Motorola DP4400e & DP4800e D Shape Earpiece & Boom Microphone

$112.20 incl. GST ($102.00 excl. GST)

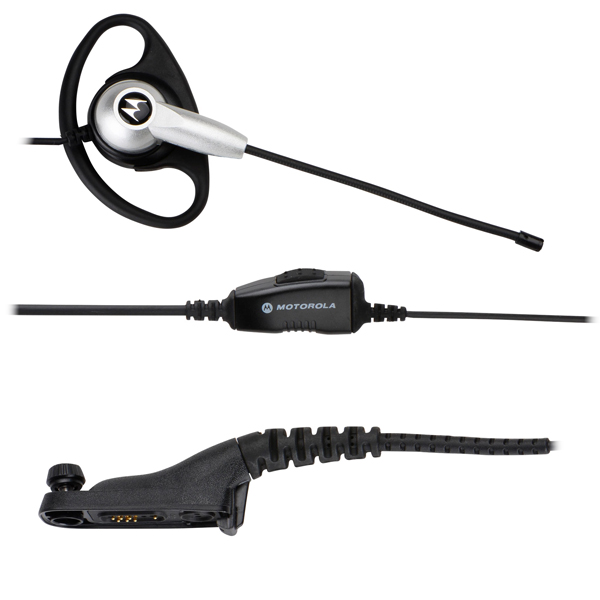

A very comfortable and contemporary D-style earpiece with flexible boom microphone and in-line push to talk switch that is compatible with all Motorola DP4000/e series two-way radios including DP4400e and DP4800e as well as DP3400/01 and DP3600/01 older models.

Description

A very comfortable and contemporary Motorola DP4400e D-style earpiece with flexible boom microphone and in-line push to talk switch that is compatible with all Motorola DP4000/e series two-way radios as well as DP3400/DP3600 older models.

Features

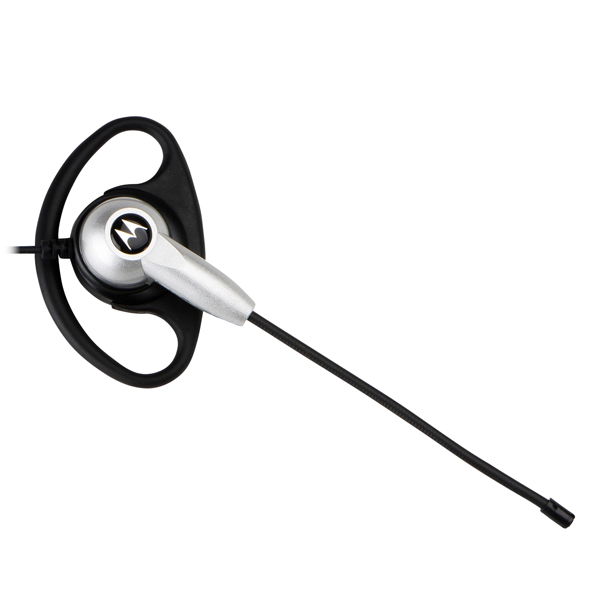

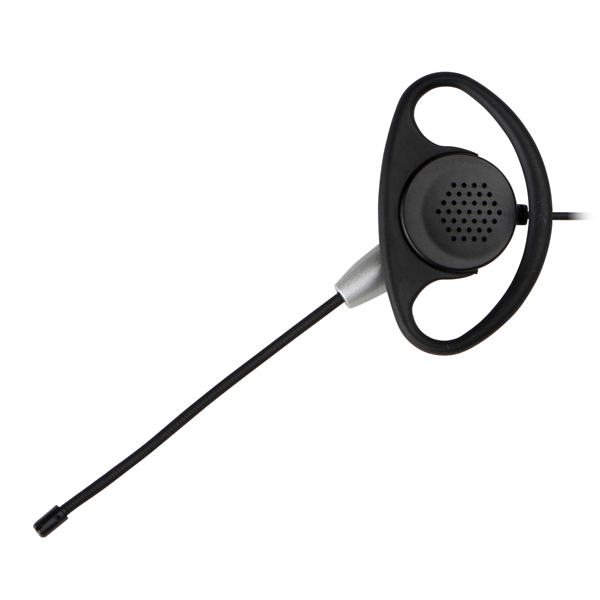

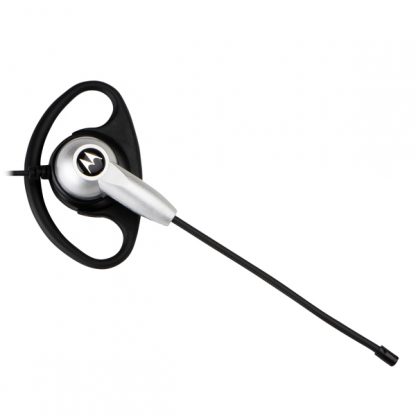

  • D-Shape Ear Hook Earpiece
  • Comfortable Fit
  • Contemporary Look & Feel
  • Designed For Hospitality, Event Management & Security
  • Extended Use Tested
  • Flexible Microphone
  • Inline PTT Button (Shown Below)
  • Clear Audio Reception

How To Use

The earpiece attaches to the radio using the accessory connector (shown below). Once connected (also called installed), the radio’s inbuilt microphone and speaker are disabled and routed via the earpiece. The earpiece can then be used to listen to incoming audio. When the user wants to speak, they must press the PTT button (shown below) and their voice will be routed via the flexible boom microphone.

Inline PTT Button

The button is integrated into the cable and is situated a good distance from the earpiece allowing the PTT button to be comnveniently clipped to the tie-clip or collar area of the user’s clothing.

motorola pmln5096



Motorola MOTOTRBO DP4 Series Connector

The connector on this earpiece is the familiar DP4 series connector (also known as M7). This is compatible with all DP4000, DP4000e and older DP3400/DP3600 series (not DP3441/e or DP3661e).

motorola dp series connector

Compatible Two Way Radios

This earpiece is compatible with many different series’ of two-way radios. But it’s important to check this list to ensure the radio you have is compatible because earpieces cannot be returned. This earpiece is compatible with these radios.

  • APX 2000
  • APX 3000
  • APX 6000
  • APX 7000
  • APX 8000
  • DP 4000 Series
  • DP 4000e Series
  • DP 3400/DP3600 Series (not DP3441/e or DP3661e)

Please note: This earpiece does not fit the DP3441, DP3441e or DP3661e as these radios have a different connector.



Additional information

Brand

Motorola Solutions

Accessory Connector

Motorola Multipin DP4000 (M7)

Model

PMLN5096A
