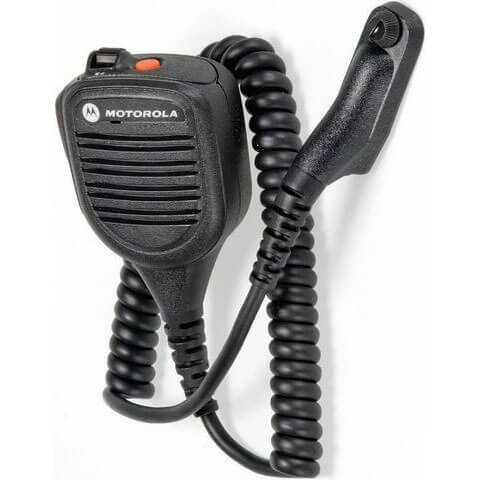

A full-size remote speaker micophone that conforms to IP57 ingres-resistance with volume control (APX only) & emergency button. This microphone is compatible with all DP4000 & DP4000e series as well as some APX series radios.
The following radios have a MOTOTRBO DP-series connector and allow the microphone to connect directly to the side:
- Motorola DP3400
- Motorola DP3600
- Motorola DP4400e & DP4401e
- Motorola DP4601e
- Motorola DP4800e & DP4801e
- Motorola APX2000
- Motorola APX3000
- Motorola APX1000
The emergency button on this microphone is not a replica of the emergency button on the radio and requires additional programming by Radiotronics or via the software (if you program your own radios).
Programming this button is done as follows under Configuration > Genral > Control Buttons.
Volume Control Rocker Switch
Whilst this microphone has a rocker switch (up and down) volume control, this can only lower the volume that the radio’s rotary volume control is set to.
