Description

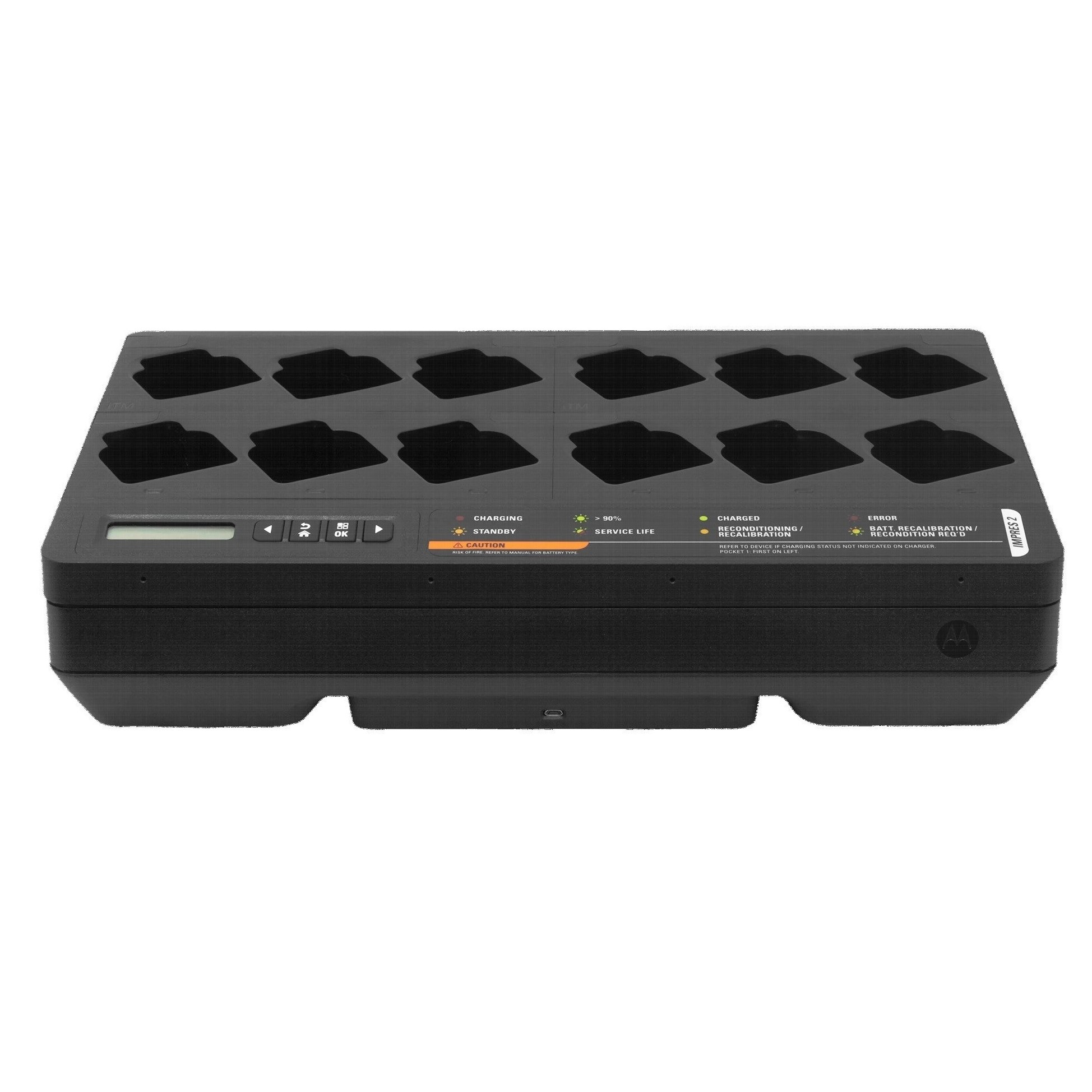

Motorola PMPN4215 is a 12-way charger for the MTP3000 and MTP6000 series (legacy and current including the latest MTP6650 model).
Also see: Motorola MTP3000 & MTP6000 IMPRES v2 6-Way Charger
Features
Motorola PMPN4215 is an IMPRES version 2, 12-way multi unit charger. Motorola PMPN4215 includes 12 pockets for radio or battery on it’s own charging. Being IMPRES-2 compatible this charger has a single display but can also be managed by the Motorola IMPRES battery management software. IMPRES Fleet management, unlike the previous model, no longer requires separate Charging Interface Unit (CIU). PMPN4215 requires one USB A to USB micro-B cable (CB000458A07) to connect to PC and IMPRES battery software.
Operating voltage is anywhere (auto switching) between 100V and 240V (AC). The power cord supplied depends on the model chosen when ordering. See the model table below.
iTM capability
iTM is available via integrated hub and single USB connection to charger.
Compatible Batteries
The following batteries are certified for use with this charger:
- NNTN8020 (MTP3000 & MTP6000)
- NNTN8023 (MTP3000 & MTP6000)
- PMNN4522 (MTP6650 Only)
Compatible Charger Models
- MTP3000 Series: MTP3100, MTP3150, MTP3200, MTP3250
- MTP6000 Series: MTP6550, MTP6750
Model Table
| Part Number | Model Number | Base Unit | Power Cord | Region | Notes |
|---|---|---|---|---|---|
| PMPN4215 | PMPN4215A | – | – | N/A | – |
| PMPN4216 | PMPN4216A | PMPN4215 | 3087791G01 (U.S.) | North America | 10 Days Lead Time |
| PMPN4217 | PMPN4217A | PMPN4215 | 3087791G04 (EU) | Western Europe | 10 Days Lead Time |
| PMPN4218 | PMPN4218A | PMPN4215 | 3087791G07 (UK) | UK | 10 Days Lead Time |
| PMPN4219 | PMPN4219A | PMPN4215 | 3087791G10 (A/NZ) | A/NZ | Usually In Stock |
