Description

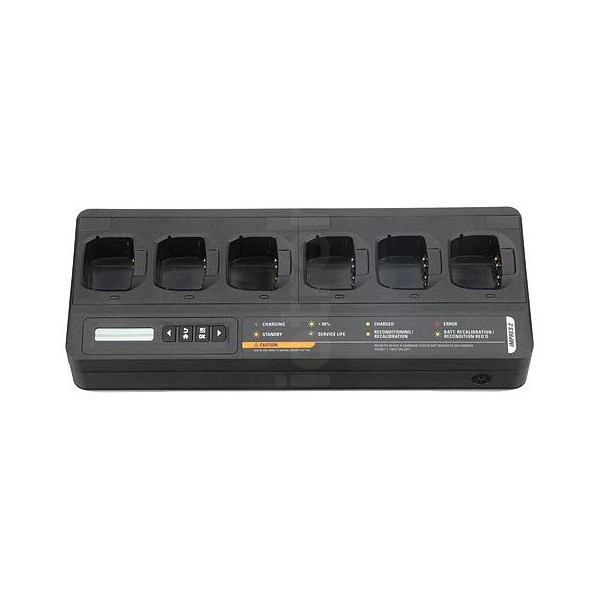

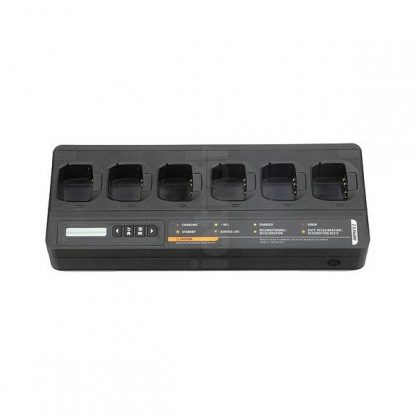

Motorola PMPN4404 (aka PMPN4404A, PMPN4400 and PMPN4400A) is a 6-way charger for the MTP3000 and MTP6000 series (legacy and current including the latest MTP6650 model).
Also see: Motorola MTP3000 & MTP6000 IMPRES v2 12-Way Charger
You can: download the user guide here.
Features
Motorola PMPN4404 is an IMPRES (read more about IMPRES here) version 2, 6-way multi unit charger. Motorola PMPN4404 includes 6 pockets for radio or battery on it’s own charging.
Being IMPRES-2 compatible this charger has a single display but can also be managed by the Motorola IMPRES battery management software.
Unlike the previous model of this changer, the Motorola PMPN4404 longer requires separate Charging Interface Unit (CIU). Motorola PMPN4404 requires one USB A to USB micro-B cable (CB000458A07) to connect to PC and IMPRES battery software.
Operating voltage is anywhere (auto switching) between 110V and 240V (AC). The power cord supplied depends on the model chosen when ordering. See the model table below.
Motorola PMPN4404 Includes
- Motorola PMPN4400 Charger Base
- Motorola HW001384A01 Charger Triple Pocket (x2, Already Fitted)
- Motorola PS000242A01 Power Supply
- Motorola 3087791G10 Mains Power Cord (Unavailable, replaced by Straight IEC Power Cord With A/NZ Plug)
iTM capability
iTM is available via integrated hub and single USB connection to charger.
Compatible Batteries
The following batteries are certified for use with this charger:
- NNTN8020 (MTP3000 & MTP6000)
- NNTN8023 (MTP3000 & MTP6000)
- PMNN4522 (MTP6650 Only)
Compatible Charger Models
- MTP3000 Series: MTP3100, MTP3150, MTP3200, MTP3250
- MTP6000 Series: MTP6550, MTP6750
Model Table
| Part Number | Model Number | Base Unit | Power Cord | Region | Notes |
|---|---|---|---|---|---|
| PMPN4400 | PMPN4400A | – | – | N/A | – |
| PMPN4401 | PMPN4401A | PMPN4400 | 3087791G01 (U.S.) | North America | 10 Days Lead Time |
| PMPN4402 | PMPN4402A | PMPN4400 | 3087791G04 (EU) | Western Europe | 10 Days Lead Time |
| PMPN4403 | PMPN4403A | PMPN4400 | 3087791G07 (UK) | UK | 10 Days Lead Time |
| PMPN4404 | PMPN4404A | PMPN4400 | 3087791G10 (A/NZ) | A/NZ | Usually In Stock |
Note: All models use the PS000242A01 power supply and a power cord in the table above. In other words, if you need a replacement power cord, you might need the PS000242A01 PSU as well.
