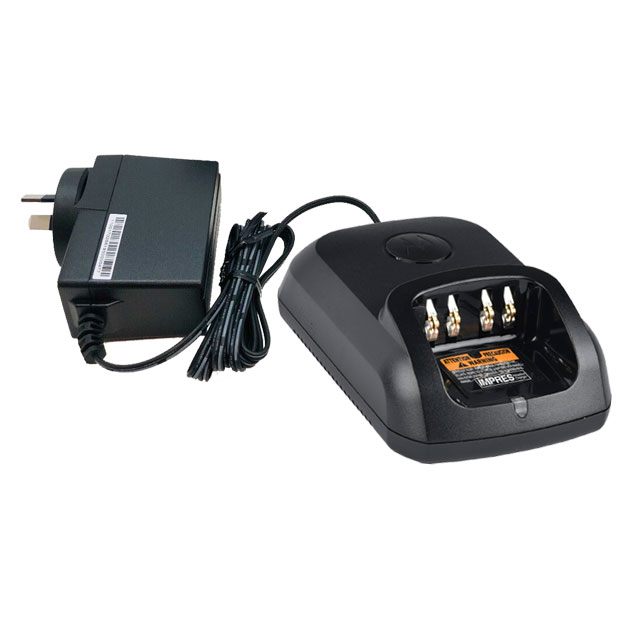

Motorola WPLN4256 (WPLN4256A/WPLN4256B) is an IMPRES single charger (with power supply included) compatible with all DP2000 and DP4000 MOTOTRBO series two-way radios.
The Motorola WPLN4256B IMPRES single charger can accommodate either a radio with attached battery or a stand-alone battery. This allows WPLN4256B to keep a battery charged at all times.
Motorola WPLN4256 Compatible Radios
- DP2000 Series: DP2400e & DP2600e
- DP3000 (Legacy) Series: DP3400, DP3401, DP3600 & DP3601
- DP4000 Series: DP4400e, DP4401e, DP4600e, DP4601e, DP4800e, DP4801e
- DP4000 Ex (ATEX) Series: DP4401Ex, DP4801Ex
- MTP8000 (TETRA/ATEX) Series: MTP8000Ex
Note: This is not suitable for the DP3441e and DP3661e. For this radio you will need the Motorola PMLN5199.
Motorola WPLN4256 Features
Motorola WPLN4256 is a fully automated IMPRES (read more about IMPRES here) battery care system that is equipped with these features:
- Adaptive charging to accommodate a wide variety of battery types, including IMPRES 2, IMPRES, and other genuine Motorola Solutions batteries.
- Communications Interface built-in for charger reprogramming, IMPRES battery data upload to an IMPRES Battery Fleet Management System (Sold Separately) and iTM communication; through a USB hub.
- Keypad menu allows charger setup and basic battery analysis.
- Information Display – shows battery status.
- Energy Efficiency Features – the charger pockets will automatically sleep, then wake to respond to user activities, or to service a battery in the pocket.
- Preparation of a battery for long-term storage.
- Preparation of a Lithium-ion battery for shipment. There are additional advantages when charging an IMPRES 2 Lithium-ion battery with an IMPRES 2 Adaptive Charger: • Faster charging than IMPRES and Non IMPRES chargers.
- Extended life cycle.
Switch off when charging: It is important to note that you should never switch the radio on while in the charger. Doing so risks damaging the battery, radio, or both.
Motorola WPLN4256 Includes
- Motorola WPLN4226 Charger Base (Not available separately)
- Motorola PS000037A03 Power Supply
Note: This kit is a direct replacement for NNTN8117, NNTN8117A, NNTN8117B, WPLN4226, WPLN4226A, WPLN4226B, WPLN4225, WPLN4225A and WPLN4225B.
Motorola WPLN4256 Compatible Batteries
- NNTN7789 IMPRES IECEx IP67 Li-Ion Battery
- NNTN8128 IMPRES Li-Ion Battery
- NNTN8129 High-Capacity IMPRES IP67 Li-Ion FM Battery
- NNTN8287 IMPRES CSA 157 IP67 Li-Ion Battery
- NNTN8305 IMPRES Li-Ion Battery
- NNTN8359 IMPRES IECEx/ATEX IP67 Li-Ion Battery
- NNTN8386 IMPRES CSA 157 Li-Ion Battery
- NNTN8560 IMPRES IP67 TIA4950 Li-Ion Battery
- NNTN8570 IMPRES IECEx/ATEX IP67 Li-Ion Battery
- NNTN8750 IMPRES CSA IP67 Li-Ion Battery
- NNTN8840 IMPRES IECEx IP67 Li-Ion Battery
- PMNN4065 Ni-MH Battery
- PMNN4066 IMPRES Li-Ion Battery
- PMNN4069 IMPRES Li-Ion FM Battery
- PMNN4077 High-Capacity IMPRES Li-Ion Battery
- PMNN4101 IMPRES IP57 Li-Ion Battery
- PMNN4102 IMPRES IP57 Li-Ion FM Battery
- PMNN4103 High-Capacity IMPRES IP57 Li-Ion Battery
- PMNN4104 IP57 Ni-MH Battery
- PMNN4262 Ultra High-Capacity IMPRES IP57 Li-Ion Battery
- PMNN4406 IP68 Li-Ion Battery
- PMNN4407 IMPRES IP68 Li-Ion Battery
- PMNN4409 High-Capacity IMPRES IP68 Li-Ion Battery
- PMNN4412 IP58 Ni-MH Battery
- PMNN4415 IP56 Ni-MH Battery
- PMNN4416 IP56 Li-Ion Battery
- PMNN4417 IMPRES IP56 Li-Ion Battery
- PMNN4418 High-Capacity IMPRES IP56 Li-Ion Battery
- PMNN4424 High-Capacity IMPRES Li-Ion Battery
- PMNN4435 IP68 Li-Ion Battery
- PMNN4448 High-Capacity IMPRES IP67 Li-Ion Battery
- PMNN4463 IP68 Li-Ion Battery
- PMNN4488 IMPRES IP68 HE DENS Li-Ion Battery (For Vibrating Belt Clip)
- PMNN4489 IMPRES IP68 TIA4950 HE DENS Li-Ion Battery
- PMNN4490 IMPRES IP68 TIA4950 HE DENS Li-Ion Battery
- PMNN4491 IMPRES IP68 Li-Ion Battery
- PMNN4493 IMPRES IP68 HE DENS Li-Ion Battery
- PMNN4525 IMPRES IP68 Li-Ion Battery
- PMNN4543 IP68 Li-Ion Battery
- PMNN4544 High-Capacity IMPRES IP68 Li-Ion Battery
